PRO Hydro-Drive

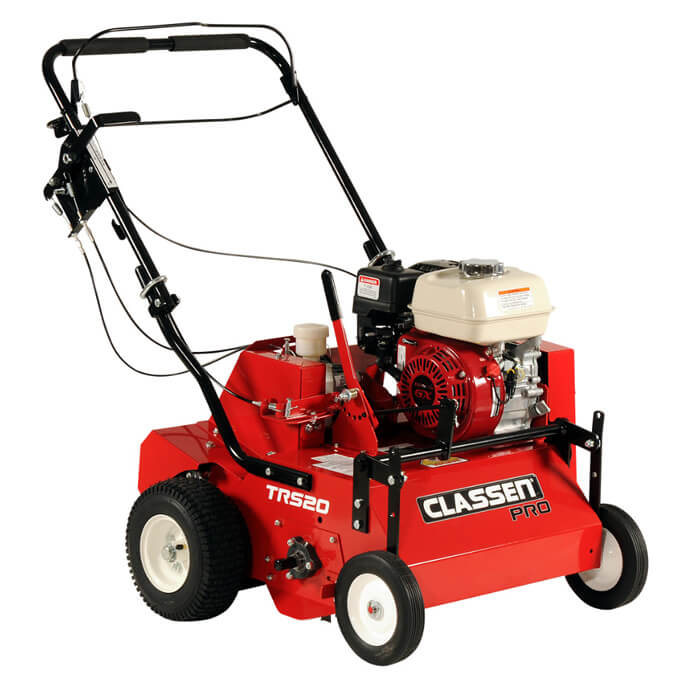

Classen TRS-20H Pro Hydro-Drive Self-Propelled Turf Rake

Dethatch on hills and grades much easier with the fatigue-free operation of the Classen PRO Self-Propelled Turf Rake. Easily converts to a vertical cutter. Folding handle makes it easy to transport. Excellent for rental or commercial use.

  • Operates forward and reverse
  • Variable speed from 0 to 3.4 mph
  • Makes loading and unloading on ramps a snap
  • Great on hills
  • 2-Year Warranty

PRO Hydro-Drive Turf Rake Specifications

Model TRS-20H
Engine Honda GX160
Transmission Hydrostatic
Fuel Capacity, gal (l) 0.8 (3)
Height Adjustment Positions 10
Height Adjustment Increments, in (cm) 0.16 (0.4)
Front Wheels, in (cm) 8x1.75 (20.3x4.5)
Front Wheels Style Solid Rubber
Rear Wheels, in (cm) 11x4-5 (27.9x10.2-12.7)
Rear Wheels Style Semi-pneumatic
Dimensions LxWxH, in (cm) 43.5x31.5x40 (110.5x80x101.6)
Folded Dimensions LxWxH, in (cm) 30.5x31.5x34.5 (77.5x80x87.6)
Dry Weight, lbs (kg) 300 (136.1)

Classen PRO Hydro-Drive Turf Rakes Features

  • Folding handle for easy transportation
  • 28 heat–treated flail blades with spacing of 11/16″ standard adjustable up to 1–3/8″
  • 5-position, single action height adjustment
  • Heavy–duty, greasable bearings with cast iron housings
  • Wheels have sealed bearings and semi–pneumatic tires
  • Can be converted to a vertical cutter in minutes
  • Multiple blade options available for every type of turf

Turf Rake Accessories

Flail Blades

Used to treat moderate thatch levels. Ideal for deep rooted grasses. Blades both lift thatch and thinly slice soil surface.

Multi-purpose Blades

Deep slicing blades for thatch a 1/2” or deeper. The unique design of the blades, with a cutting edge on both ends, doubles the blade life.

Spring Tines

Ideal for annual thin to moderate thatch control. Pliable tines gently rake through the grass

Vertical Slicer Blades

Sharpened on both sides, designed to slice through surface root grasses.
