Classen blade assembly: Classen turf rakes and Classen turf seeders can be converted for different tasks with the optional Classen blade assemblies.
Compatibility Table For Classen Turf Rakes And Seeders – Complete Blade Assembly
Complete Blade Assemblies Include: Blades/Tines, Shaft, End Plates, Bearings, Pulley, Hardware
| wdt_ID | Product Model | Flail (C900003) | Multipurpose (C900026) | Slicer (C900027) | Spring Tine (C900045) |
|---|---|---|---|---|---|
| 1 | HTS-20 | N/A | Standard | N/A | N/A |
| 2 | TR-20 | Standard | Optional | Optional | Optional |
| 3 | TR-20H | Standard | Optional | Optional | Optional |
| 4 | TR-20K | Standard | Optional | Optional | Optional |
| 5 | TR-20R | Optional | Optional | Optional | Standard |
| 6 | TRS-20 | Standard | Optional | Optional | Optional |
| 7 | TRS-20H | Standard | Optional | Optional | Optional |
| 8 | TS-20 | Optional | Standard | Optional | Optional |
| 9 | TS-20H | Optional | Standard | Optional | Optional |
| 10 | TS-20K | Optional | Standard | Optional | Optional |
| 11 | TR-20eV | Standard | N/A | N/A | N/A |
| 12 | TS-20eV | N/A | Standard | N/A | N/A |
Flail Blade

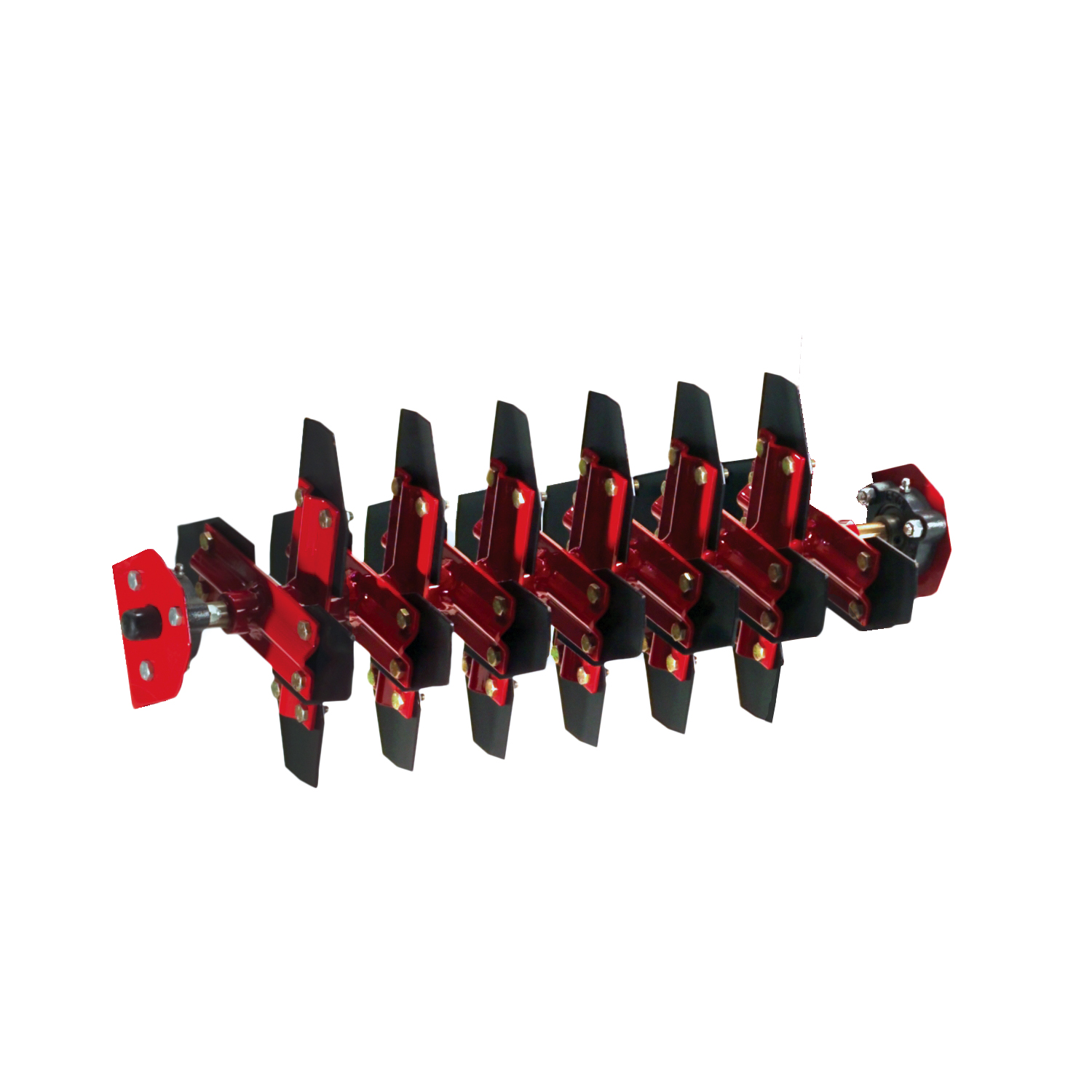

Multipurpose Blade

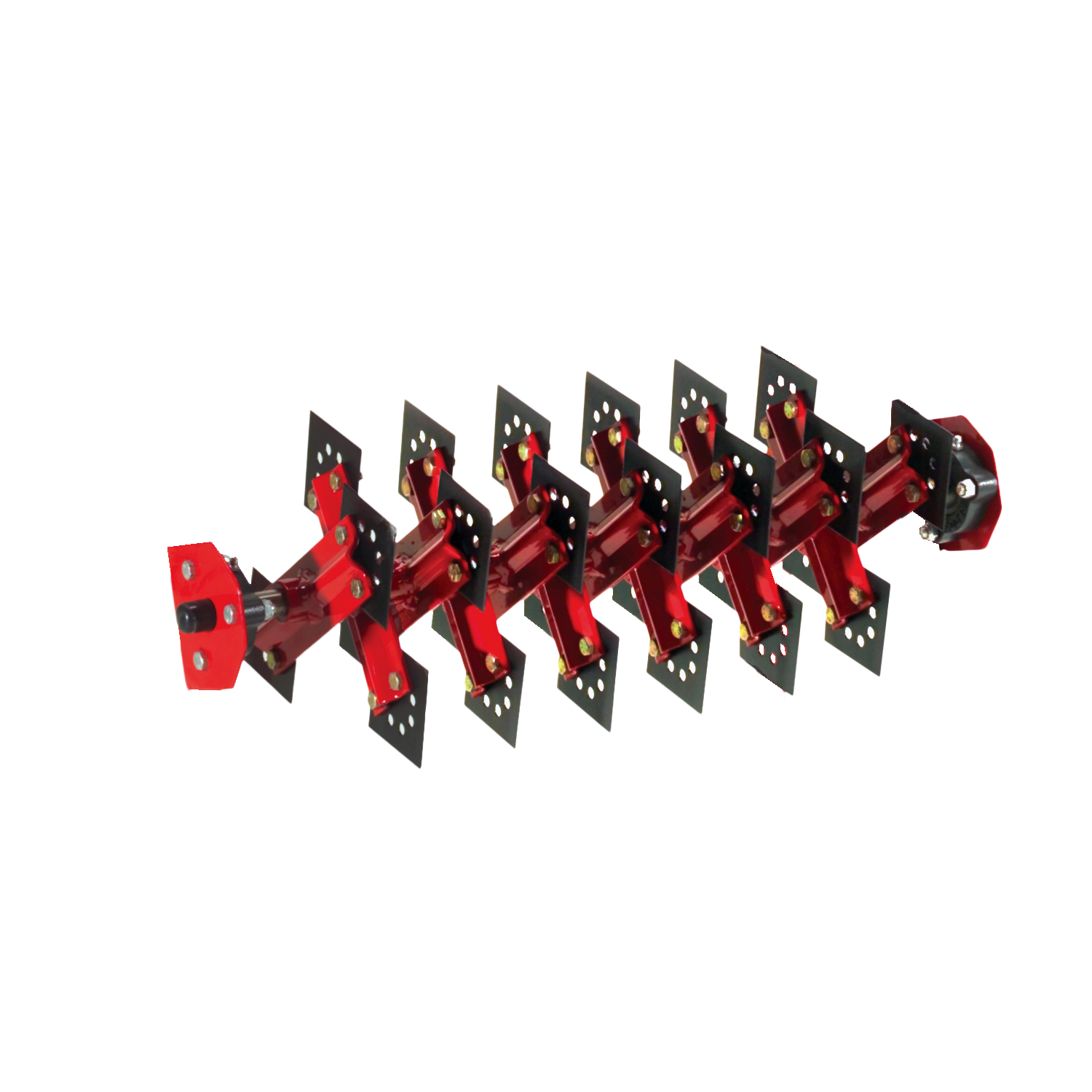

Vertical Slicer Blade
Spring Tine
Compatibility Table For Classen Turf Rakes And Seeders – Partial Blade Assembly
Partial Blade Assemblies Include: Blades/Tines and Shaft
| wdt_ID | Product Model | Flail (C600014) | Multipurpose (C600030) | Slicer (C600040) | Spring Tine (C600064) |
|---|---|---|---|---|---|
| 1 | HTS-20 | N/A | Standard | N/A | N/A |
| 2 | TR-20 | N/A | Optional | Optional | Optional |
| 3 | TR-20H | N/A | Optional | Optional | Optional |
| 4 | TR-20K | N/A | Optional | Optional | Optional |
| 5 | TR-20R | Optional | Optional | Optional | N/A |
| 6 | TRS-20 | N/A | Optional | Optional | Optional |
| 7 | TRS-20H | N/A | Optional | Optional | Optional |
| 8 | TS-20 | Optional | Standard | Optional | Optional |
| 9 | TS-20H | Optional | Standard | Optional | Optional |
| 10 | TS-20K | Optional | Standard | Optional | Optional |
