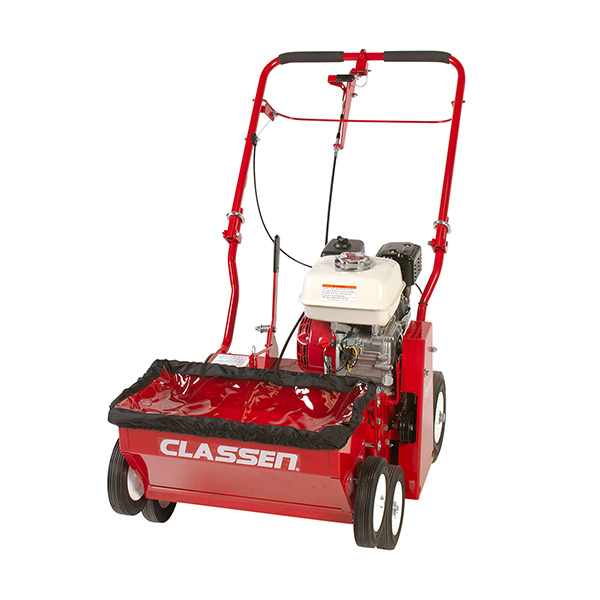

Classen Walk-Behind Turf Seeder
The Classen TS-20 turf overseeder is a multipurpose machine for seeding a new lawn or overseeding an existing lawn. The front seed drop ensures follow-up soil coverage for better seed germination. The blades are designed with a cutting edge on both ends, which doubles blade life. Handles fold easily, for portability and storage. Classen turf overseeders, with removable seedbox, convert in minutes to a turf rake or vertical cutter.
- More blades = better germination. Plus, each heat-treated blade can be rotated 180 degrees for double the life.
- The industry’s tightest blade placement (spaced 1.5″ apart) provides the best seed coverage
- This versatile machine can convert into a turf rake or vertical cutter in minutes
- 2-Year Warranty
Walk-Behind Overseeder Common Specifications
| Transmission | Belt Drive |
| Operating Width, in (cm) | 20 (50.8) |
| Blade/Reel (Standard) | Multipurpose |
| Number of Blades | 26 |
| Height Adjustment Positions* | 5 |
| Height Adjustment Increments, in (cm) | 0.25 (0.6) |
| Front Wheels, in (cm) | 8x1.75 (20.3x4.5) |
| Front Wheels Style | Solid Rubber |
| Rear Wheels, in (cm) | 10x2.6 (25.4x6.6) |
| Rear Wheels Style | Solid Rubber |
| Dimensions LxWxH, in (cm) | 51x27x39 (130x69x99) |
| Folded Dimensions LxWxH, in (cm) | 38x27x25 (97x69x64) |
| Dry Weight, lbs (kg) | 150 (68) |
| Warranty** | 2 years |
| *to accommodate blade wear | **engines warranted separately |
Classen Walk-Behind Overseeder Features
- Available with Honda® GX160 or Kohler CH245 engines
- Multipurpose machine for seeding a new lawn or overseeding an existing lawn
- Front seed drop ensures follow-up soil coverage over seed for better germination
- Folding handle and quick-remove seed box for easy transportation
- 26 heat–treated multipurpose blades, uniquely designed with cutting edge on both ends of blade for double the life
- 1-1/2″ spacing between blades 5-position, single action height adjustment
- Durable, easily removable covered seed box is mounted higher to eliminate clogging
- Pin attachment design allows for quick removal of seed box to empty out excess seed
- Can be converted in minutes to a standard rake or vertical cutter
- Partial and Complete Reel Assemblies are available
TS-20H
| Model | TS-20H |
| Engine | Honda GX160 |
| Transmission | Belt Drive |
| Operating Width, in (cm) | 20 (50.8) |
| Blade/Reel (Standard) | Multipurpose |
| Number of Blades | 26 |
| Height Adjustment Positions* | 5 |
| Height Adjustment Increments, in (cm) | 0.25 (0.6) |
| Front Wheels, in (cm) | 8x1.75 (20.3x4.5) |
| Front Wheels Style | Solid Rubber |
| Rear Wheels, in (cm) | 10x2.6 (25.4x6.6) |
| Rear Wheels Style | Solid Rubber |
| Dimensions LxWxH, in (cm) | 51x27x39 (130x69x99) |
| Folded Dimensions LxWxH, in (cm) | 38x27x25 (97x69x64) |
| Dry Weight, lbs (kg) | 150 (68) |
| Warranty** | 2 years |
| *to accommodate blade wear | **engines warranted separately |
TS-20K
| Model | TS-20K |
| Engine | Kohler CH245 |
| Transmission | Belt Drive |
| Operating Width, in (cm) | 20 (50.8) |
| Blade/Reel (Standard) | Multipurpose |
| Number of Blades | 26 |
| Height Adjustment Positions* | 5 |
| Height Adjustment Increments, in (cm) | 0.25 (0.6) |
| Front Wheels, in (cm) | 8x1.75 (20.3x4.5) |
| Front Wheels Style | Solid Rubber |
| Rear Wheels, in (cm) | 10x2.6 (25.4x6.6) |
| Rear Wheels Style | Solid Rubber |
| Dimensions LxWxH, in (cm) | 51x27x39 (130x69x99) |
| Folded Dimensions LxWxH, in (cm) | 38x27x25 (97x69x64) |
| Dry Weight, lbs (kg) | 150 (68) |
| Warranty** | 2 years |
| *to accommodate blade wear | **engines warranted separately |
Walk-Behind Turf Overseeder Accessories
Flail Blades
Used to treat moderate thatch levels. Ideal for deep rooted grasses. Blades both lift thatch and thinly slice soil surface.
Multi-purpose Blades
Deep slicing blades for thatch a 1/2” or deeper. The unique design of the blades, with a cutting edge on both ends, doubles the blade life.
Spring Tines
Ideal for annual thin to moderate thatch control. Pliable tines gently rake through the grass
Vertical Slicer Blades
Sharpened on both sides, designed to slice through surface root grasses.
